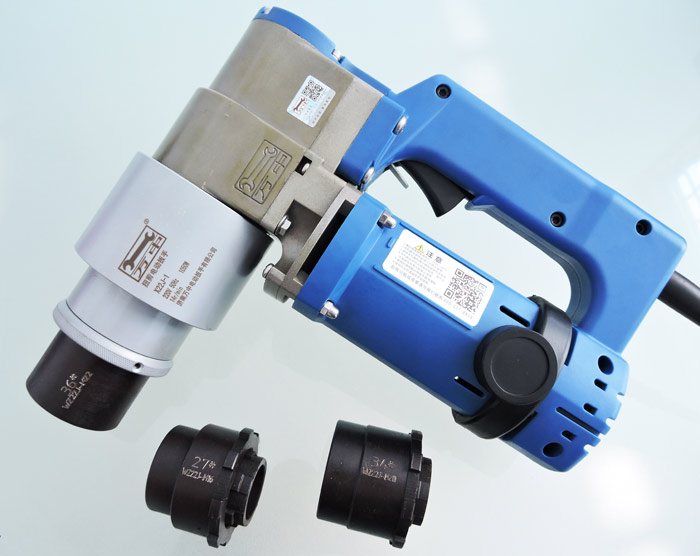

型號：x24j-3
Model: x24j-3
額定電壓：220V
Rated voltage: 220V
額定電流：5.0A
Rated current: 5.0A
額定功率：1050W
Rated power: 1050W
大扭矩：1250N/m
Large torque: 1250n/m
空載轉速：10r/m
No load speed: 10r/m
凈重：6.2kg
Net weight: 6.2kg
適用螺栓：M16 M20 M22 M24
Applicable bolt: M16 M20 M22 M24
扭剪扳手主要是終緊扭剪型高強螺栓的，它的目的就是把扭剪型高強螺栓的梅花頭打斷即可。工作詩扳手頭對準螺栓頭，扣動開關即可開始工作，幾秒后，螺栓梅花頭將被扭斷，然后抽出扳手扣動將梅花頭彈出，即結束工作。
The torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its purpose is to break the plum blossom head of the torsional shear type high-strength bolt. Align the wrench head with the bolt head, turn the switch to start working. After a few seconds, the bolt Torx head will be broken, and then pull out the wrench to snap the Torx head out, that is, end the work.
電動扳手主要應用于鋼結構安裝行業，專門安裝鋼結構高強螺栓，高強度螺栓是用來連接鋼結構接點的，通常是用螺栓群的方式出現。
Electric wrenches are mainly used in the steel structure installation industry to install high-strength bolts of steel structures. High strength bolts are used to connect steel structure joints, usually in the form of bolt groups.
沖擊電動扳手主要是初緊螺栓的，它的使用很簡單，就是對準螺栓扳動電源開關就行。電動扭剪扳手主要是終緊扭剪型高強螺栓的，它的使用就是對準螺栓扳動電源開關，直到把扭剪型
The impact electric wrench is mainly used to initially tighten the bolt. Its use is very simple, that is, just aim at the bolt and pull the power switch. The electric torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its use is to pull the power switch against the bolt until the torsional shear type
高強螺栓的梅花頭打斷為止。電動定扭矩扳手既可初緊又可終緊，它的使用是先調節扭矩，再緊固螺栓。電動轉角扳手主要也屬于定扭矩扳手的一種，它的使用是先調節旋轉度數，再緊固螺栓。電動角向扳手是一種專門緊固鋼架夾角部位螺栓的電動扳手，它的使用和電動扭剪扳手原理一樣。
Until the plum blossom head of high-strength bolt is broken. The electric constant torque wrench can be used for initial tightening and final tightening. Its use is to adjust the torque first, and then tighten the bolts. The electric angle wrench mainly belongs to a kind of constant torque wrench. Its use is to adjust the rotation first, and then tighten the bolts. The electric angle wrench is an electric wrench specially used to fasten the bolts at the included angle of the steel frame. Its use principle is the same as that of the electric torsion shear wrench.
以上就是為大家介紹的
扭剪扳手http://hkystar.com的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務.
The above is the torsional shear wrench introduced to you http://hkystar.com I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service
